What Size Is Standard Pallet Racking

Time:6/27/2025

When setting up a warehouse or distribution center, one of the most crucial decisions you'll make is selecting the right pallet racking system. Among the first questions many professionals ask is: "What size is standard pallet racking?" While this may seem like a simple question, the answer depends on several factors including regional standards, industry requirements, and the type of products being stored.

In this article, we’ll explore what is generally considered standard pallet racking size, the variations that exist, and how to choose the best dimensions for your operation.

1. What Is Pallet Racking?

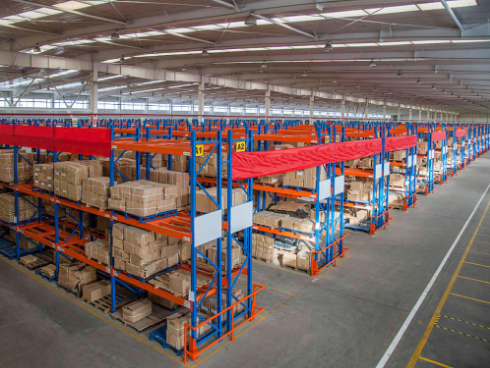

Pallet racking is a material handling storage system designed to store pallets of goods in horizontal rows with multiple levels. It is widely used in warehouses, manufacturing facilities, and distribution centers. The main components typically include upright frames (vertical columns), horizontal beams, and accessories like wire decking or pallet supports.

The goal is to maximize vertical storage space while ensuring safe, organized, and easy access to goods with a forklift or pallet jack.

2. Understanding Standard Pallet Racking Sizes

There is no single "universal" standard size for pallet racking, but there are common dimensions that are widely accepted and used around the world. Most pallet racking systems are designed to store standard pallets (also known as GMA pallets in North America), so the racking dimensions are based around these pallet sizes.

A. Standard Pallet Dimensions (North America)

GMA pallet: 48” x 40” (1,219 mm x 1,016 mm)

This is the most widely used pallet size in the U.S. and Canada, especially in grocery, retail, and food processing industries.

B. Typical Beam Lengths (Width of Each Bay)

The horizontal beams support the pallets. The length of these beams is usually determined by how many pallets you want to store per level (side by side):

96” (8 feet) – stores 2 standard 48” pallets

108” (9 feet) – stores 3 standard 40” pallets

120” (10 feet) – stores 3 standard 48” pallets with small spacing

144” (12 feet) – stores 4 standard 40” pallets

The most common beam length is 96 inches, ideal for two standard pallets placed side by side with some space in between for easy loading and unloading.

C. Typical Upright Frame Heights

Uprights are the vertical frames that support the beams. Their height depends on the ceiling height of your facility and the number of pallet levels you plan to store:

8 feet (96”)

12 feet (144”)

16 feet (192”)

20 feet (240”)

24 feet (288”)

Custom heights available up to 40 feet or more in high-density facilities

The most common upright height for general warehouses is 16 to 20 feet, which allows for 3 to 4 levels of pallet storage including the floor level.

D. Standard Depth (Front to Back)

The depth of the upright frames (how far the rack extends from front to back) is usually based on pallet depth:

42” deep – the most common for 48” deep pallets, allowing a slight overhang

36” deep – for smaller pallets or when space is limited

48” deep – for deeper pallets or specific applications

42 inches is considered the industry standard for depth in selective pallet racking systems.

3. A Sample Configuration

A typical selective pallet rack bay might look like this:

Upright Height: 16 feet (192”)

Beam Length: 96 inches (8 feet) – for 2 pallets per level

Rack Depth: 42 inches

Levels: 3 beam levels + floor level = 4 pallet levels

This setup would hold 8 pallets per bay (2 pallets per level × 4 levels). Multiply this by the number of bays and rows in your warehouse to calculate overall capacity.

4. Why Standard Sizes Matter

Using standard sizes is beneficial for several reasons:

Interchangeability: Easier to source replacement parts

Cost Efficiency: Standard sizes are mass-produced and more affordable

Quick Installation: Less customization means faster setup

Compatibility: Designed to work with standard forklifts and pallets

Custom-sized racking is available, but often comes at a higher cost and longer lead time.

5. International Variations

Outside of North America, standard pallet sizes and racking dimensions may differ:

Europe: Uses Euro pallets (1200 mm x 800 mm), so racking is designed accordingly

Asia & Australia: Use ISO standard pallets or region-specific sizes, which may affect rack width and depth

Always consult local regulations and pallet standards before purchasing racking for international operations.

6. How to Choose the Right Pallet Rack Size

To choose the appropriate pallet racking size for your warehouse, consider the following:

Pallet Size: Measure length, width, and height (including load)

Ceiling Height: Determine how many vertical levels are feasible

Forklift Reach: Ensure your equipment can reach the highest pallet

Load Weight: Match beam capacity to your heaviest pallet load

Aisle Width: Maintain safe and efficient forklift travel lanes

Fire Safety Regulations: Allow for sprinkler clearance and safe egress

You may also want to consult with a racking specialist or warehouse designer to optimize layout and safety.

7. Conclusion

While there is no single "standard" pallet racking size, the most common configuration in North America features 96-inch beams, 42-inch depth, and upright frames ranging from 12 to 20 feet tall. These dimensions are ideal for storing GMA pallets in a cost-effective and space-efficient manner.

Understanding the standard dimensions is the first step toward designing a racking system that meets your operational needs while staying within budget. Whether you're outfitting a new facility or upgrading an existing one, always consider scalability, safety, and compatibility with your equipment and inventory.

By choosing the right pallet rack size and configuration, you can maximize your warehouse's storage potential and ensure smooth, safe operations.
