Understanding the Key Differences Between Electro-Galvanizing and Hot-Dip Galvanizing

Time:10/12/2024

1302

1. Overview of Galvanizing Methods

Galvanized steel provides superior protection against environmental conditions, particularly rust, compared to steel that is only painted, which is typically used for storage in enclosed rooms and warehouses. The zinc coating on galvanized steel acts as a shield, safeguarding the material from harsh weather, corrosion, and wear over time.

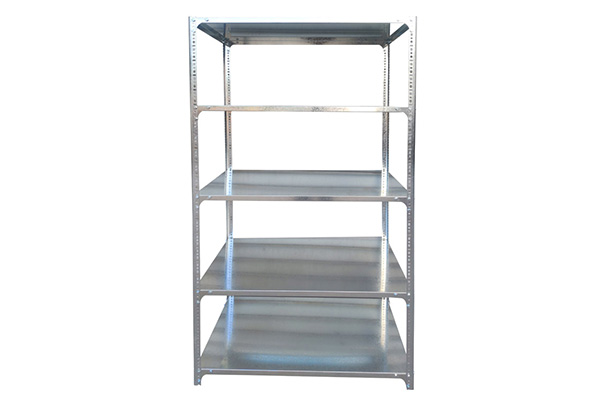

This makes galvanized steel shelving an ideal choice for applications where durability and longevity are essential.The process of galvanizing involves fully immersing the shelving profiles in zinc. This immersion ensures that the shelves are protected for long periods, preventing the erosion of the raw steel. In more extreme weather conditions, the zinc may darken or tarnish, though additional coatings can be applied to provide even greater protection.

2. Types of Galvanizing

There are two main types of galvanized steel: hot-dip galvanizing and electro-galvanizing. Understanding the differences between these methods is crucial for determining which is better suited for particular applications.

3. Difference in Processing Principles

The principles behind hot-dip galvanizing and electro-galvanizing vary significantly. Zinc’s protective mechanism includes both mechanical and electrochemical protection. When exposed to corrosion, a protective film forms on the surface of the zinc layer, which slows down further corrosion.

In electro-galvanizing, zinc ions are deposited onto the surface of the workpiece through a chemical reaction, but the zinc layer produced is typically thinner, making it more prone to corrosion.

4. Core Differences in Methods

Hot-dip galvanizing involves immersing steel parts in molten zinc. This process includes steps such as degreasing, pickling, dipping, and drying before immersing the steel in the zinc solution.

In contrast, electro-galvanizing relies on electrolytic equipment. After the workpiece is degreased and pickled, it is placed into a zinc salt solution, where a layer of zinc gradually deposits onto its surface.

5. Difference in Appearance

Hot-dip galvanizing often results in a thicker zinc layer, which may cause bubbles to form during the process, leading to a darker, slightly rough surface. On the other hand, electro-galvanized surfaces are usually smooth, bright, even, and flat. Due to its polished look, electro-galvanizing is often preferred for shelving mesh and other visible applications.

6. Thickness of Zinc Layer

The thickness of the zinc layer differs between the two methods:

Hot-dip galvanizing typically results in a thicker layer, ranging from 30 to 60 microns.

Electro-galvanizing forms a thinner layer, usually between 5 to 30 microns.

7. Service Life

The lifespan of the zinc coating also varies:

Hot-dip galvanized steel can last over 20 years, thanks to the thicker zinc coating.

Electro-galvanized coatings have a shorter lifespan, typically lasting between 2 to 5 years, making them less durable in comparison.

Conclusion:

Choosing between electro-galvanizing and hot-dip galvanizing depends on the specific needs of the project. Hot-dip galvanizing, with its thicker and more durable zinc layer, is better suited for outdoor or long-term applications.

Electro-galvanizing, on the other hand, offers a smoother surface but with a thinner zinc layer, making it ideal for applications where aesthetics and a shorter service life are acceptable.
