How to Calculate Load Capacity of Racks

Time:8/26/2025

Efficient and safe warehouse storage depends not only on how racks are designed but also on whether they are used within their load limits. Exceeding the load capacity of racks can lead to bending, structural failure, or even dangerous accidents in a warehouse. For this reason, understanding how to calculate rack load capacity is essential for warehouse managers, engineers, and anyone responsible for storage systems.

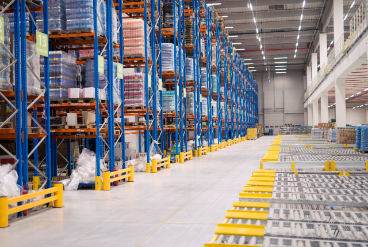

Why Load Capacity Matters

Racks are the backbone of most warehouses, holding thousands of kilograms of goods. If the weight of stored materials exceeds the design limits, the rack may deform or collapse, putting workers, inventory, and equipment at risk. Correct calculation of load capacity ensures that racks are safe, efficient, and compliant with international standards such as RMI, FEM, or ISO guidelines.

Key Factors That Affect Rack Load Capacity

Several variables influence how much weight a rack can safely hold:

Material Strength – The type of steel, its thickness, and the manufacturing quality directly determine how much load the rack can bear. High-grade steel generally allows for higher capacities.

Rack Design and Structure – Different rack types (pallet racks, cantilever racks, mezzanine floors, or shelving systems) distribute weight differently. The presence of beams, uprights, bracing systems, and welding techniques all contribute to the overall strength.

Load Distribution – Racks are designed for uniformly distributed loads (UDL). Placing heavy items on only one side or concentrating weight in the middle can reduce capacity significantly.

Installation and Anchoring – Even a strong rack can become unsafe if it is not anchored properly to the floor or if uprights are tilted. Correct installation and periodic inspection are critical.

Important Terminology

Before calculating, it helps to understand a few technical terms:

Uniformly Distributed Load (UDL): This refers to weight that is evenly spread across the beam or shelf. Racks are tested and rated based on UDL, not concentrated point loads.

Static Load vs. Dynamic Load: Static load is the weight stored without movement, while dynamic load includes the additional stress caused by forklifts placing or removing pallets.

Point Load: A concentrated load applied to a specific area, which can overstress a beam even if the total weight does not exceed the rated capacity.

Step-by-Step Guide to Calculating Load Capacity

Step 1: Identify the Rack Type

Different racks carry loads differently. For example, pallet racks use beams to support pallets, while cantilever racks rely on arms that extend outward. Identifying the rack type is the foundation of capacity calculation.

Step 2: Determine Material Strength

Review the steel grade, thickness, and design. Higher tensile steel with thicker sections supports more weight. Manufacturers often provide specifications for their rack components.

Step 3: Measure Beam Capacity

The beam is one of the most critical parts. The load capacity depends on beam length, cross-section, and steel thickness. A longer beam will have less load capacity compared to a shorter beam of the same profile.

Step 4: Calculate Upright Load Capacity

The upright (vertical post) supports the weight transferred from the beams. To find its safe load, consider the total weight per level multiplied by the number of levels. This must be within the column’s strength limit.

Step 5: Apply Load Distribution Rules

Ensure that weight is evenly distributed across shelves or beams. Uneven loading reduces effective capacity and increases the risk of bending.

Step 6: Add a Safety Factor

To ensure racks remain stable under unexpected stress, engineers usually apply a safety factor of around 1.3 to 1.5 times. This means the design capacity is higher than the advertised safe load to allow for errors and variations in real-world conditions.

Step 7: Verify with Industry Standards

After calculations, results should be compared with standards such as RMI (Rack Manufacturers Institute) or FEM (European Materials Handling Federation). Compliance ensures that racks meet globally accepted safety requirements.

Common Mistakes in Load Capacity Calculation

Many accidents occur not because of weak racks but because of misuse or miscalculation. Some common errors include:

Ignoring the importance of evenly distributed loads.

Calculating only the capacity of one level instead of the entire rack system.

Forgetting to include the weight of pallets or containers.

Using damaged beams or non-standard accessories.

Failing to apply a safety factor, which leaves no room for unexpected stresses.

The Role of Professionals and Software

While manual calculations can provide a rough estimate, professional engineers or rack manufacturers use structural analysis and software tools to provide precise values. Advanced methods such as finite element analysis (FEA) simulate how racks perform under different loading scenarios. Consulting experts is the safest approach when designing or installing large-scale racking systems.

A Practical Example

Let’s consider a simple case. A warehouse wants to store pallets of goods on a pallet racking system. Each pallet weighs about 1,000 kilograms. Two pallets are placed per level, and the beam length is 2.7 meters.

The total load per level is 2,000 kilograms.

Each beam must support half of this, which is 1,000 kilograms.

If the upright supports three levels, the total vertical load per upright is 6,000 kilograms.

Applying a safety factor of 1.3 increases the design requirement to 7,800 kilograms per upright.

In this scenario, the warehouse manager should confirm whether the selected beams and uprights meet or exceed these requirements according to the manufacturer’s specifications and industry standards.

Conclusion

Calculating the load capacity of racks is not just a technical exercise—it is a critical safety measure. The process involves evaluating material strength, structural design, load distribution, and safety factors. Mistakes such as uneven loading, ignoring safety margins, or using damaged parts can result in serious risks.

For small projects, warehouse staff can use basic calculations to estimate capacity, but for larger or more complex systems, consulting manufacturers or engineers is highly recommended. By following correct calculation methods and adhering to safety standards, warehouses can maximize space utilization while ensuring a safe working environment.
