Anti Collapse Mesh for Pallet Racking

item No:
Prevents pallet loads from falling

Enhances warehouse safety

Easy installation on racking systems

ADD TO FAVORITES INQUIRY NOW

Collections: Related Storage Equipment > Racking Accessories

DESCRIPTION

FAQ

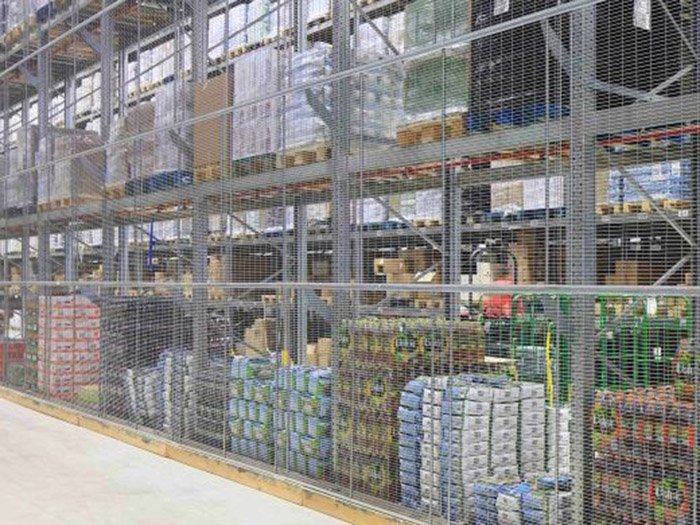

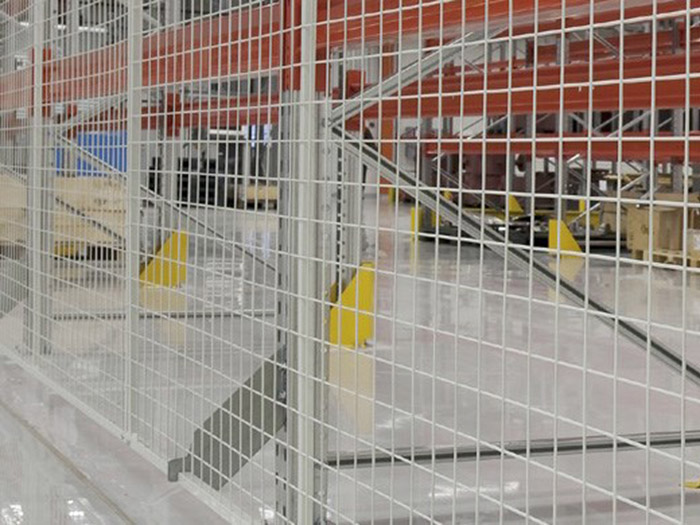

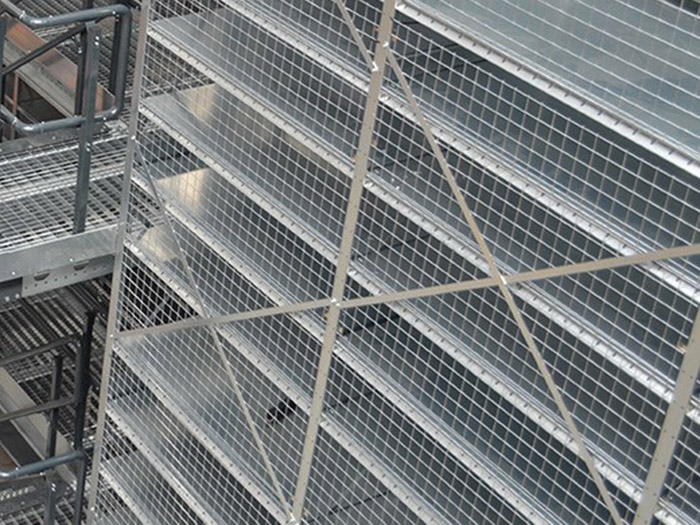

Anti-Collapse Mesh is a robust safety solution designed to attach to the back of pallet racking and shelving systems, providing a strong barrier against falling goods. This mesh system ensures operator safety, reduces the risk of accidents, and helps warehouses comply with health & safety regulations.

Beyond pallet racking, anti-collapse mesh is also highly versatile. It can be used as fencing to restrict access to hazardous areas, protect staff from machinery, or create secure zones for storing dangerous goods. Its open mesh design allows free airflow, making it ideal for environments such as chill stores and freezers where ventilation is essential.

Key Features

Heavy-Duty Steel Construction – Strong welded mesh panels built for long-term durability.

Flexible Panel Sizes – Available in multiple heights and widths, adaptable to different racking layouts.

Airflow-Friendly Design – Mesh structure allows unrestricted air circulation, suitable for cold storage.

Custom Apertures – Supplied with varying mesh apertures to meet health & safety standards.

Pallet Overhang Options – Uprights can be set at different depths to accommodate pallet sizes.

Enhanced Rigidity – Installed in a brickwork pattern for maximum stability.

Easy Installation – Rack-mounted or free-standing posts with strong fixing brackets.

Access Solutions – Sliding or swing mesh doors available, with optional automatic closure.

Secure Locking Systems – Range of locks compliant with insurance and safety requirements.

Specifications

Anti-Collapse Mesh — Specifications

Item	Details
Material	Welded high-strength steel mesh
Mesh Aperture	Standard: 50×50 mm / 100×50 mm — custom apertures available to meet H&S requirements
Wire Diameter	Typically 3 – 5 mm (customizable)
Panel Height	1000 – 2500 mm (custom sizes available)
Panel Width	800 – 1500 mm (custom widths available)
Installation Pattern	Installed in a brickwork pattern for added rigidity
Mounting Options	Rack-mounted panels or configurable free-standing posts
Pallet Overhang	Panels can be set at various depths to allow pallet overhang where required
Doors & Access	Sliding or swing doors as standard; optional automatic-closure mechanisms
Locks & Security	Range of locks available that comply with insurance and H&S requirements
Surface Treatment	Powder coated (custom colors) or galvanized finish for corrosion resistance
Applications	Rack back protection, safety fencing, hazardous-zone segregation, chill stores & freezers, automated handling areas
Benefits	Prevents falling goods, protects staff and inventory, maintains airflow for cold stores, supports compliance

Benefits

Improved Warehouse Safety – Prevents pallet loads, cartons, or materials from falling into walkways.

Worker Protection – Shields operators from accidents caused by forklifts or automated handling equipment.

Inventory Security – Reduces damage and product loss from falling items.

Regulatory Compliance – Meets health, safety, and insurance requirements.

Versatile Applications – Functions as rack back mesh, safety fencing, or hazard zone protection.

Optimized for Airflow – Perfect for cold storage and freezer environments.

Applications

Pallet racking and shelving systems

Distribution centers and warehouses

Manufacturing facilities with automated handling

Cold storage and freezer environments

Zoned-off areas with hazardous materials or machinery

Retail storage rooms requiring extra safety measures

Related Products

Wire Mesh Decking – Improves pallet storage safety and ventilation

Rack Upright Protectors – Protects racking frames from forklift impact

Warehouse Safety Barriers – Floor-level protection for pallet racks

Do you offer samples available?

Yes, samples are available. Sample lead time 3-5days generally.
Do you offer custom design?

Custom design is surely available. we have very rich experience in customizing shelves.
What is the term of payment?

Regularly, 30percentTT in advance,70percent against the copy of B/L.
What is your delivery time?

Usually: 1*20' GP container, around 15 days; 1*40'GP container, around 20days; For some urgent orders,will adjust as your requirement accordingly.
Are you manufacturer or trading company?

We are manufacturer. Our factory has been specializing in warehouse storage equipments for years. We warmly welcome you to visit our factory at anytime.
