The Ultimate Checklist for Verifying Pallet Rack Load Capacity
Time:10/13/2025
355
When it comes to warehouse safety and efficiency, pallet rack load capacity is one of the most critical factors to consider. Every component of a pallet rack system — beams, upright frames, and wire decking — plays a role in determining how much weight your racking can safely support. Overloading or miscalculating capacity can lead to damage, accidents, or costly downtime.
This checklist will guide you through verifying the load capacity of each part of your pallet rack system to ensure maximum safety and performance.
Pallet rack load capacity refers to the maximum amount of weight your racking system can safely support. This includes not only the pallet loads themselves but also the weight distributed across beams, frames, and decking.
Beam span and thickness
Frame strength and height
Wire decking material and support structure
Load distribution and pallet weight
Installation quality and floor anchoring
Tip: Always verify the rated capacity from the manufacturer and avoid estimating by eye.
Beams are one of the most important structural components in a pallet rack system. They support the pallet loads directly, so their capacity determines how much weight each level can hold.
Beam length and profile: Longer beams have lower load capacity.
Material thickness: Heavy-duty steel beams support more weight.
Load distribution: Evenly distributed loads perform better than point loads.
Example: A 96-inch beam might hold 4,000 lbs, while a 108-inch beam of the same profile may only hold 3,500 lbs.
Confirm manufacturer’s rated capacity
Match beam capacity to pallet weight
Avoid exceeding span-to-load ratio
Upright frames provide the vertical support for the racking structure. Their load capacity determines how much weight the entire bay can support safely.
Frame height — taller frames may reduce overall capacity.
Column design — structural profiles (e.g., teardrop vs. structural) vary in strength.
Bracing pattern — better bracing improves load distribution.
Anchoring — floor bolts and installation method significantly impact performance.
Verify upright frame capacity matches beam and pallet load
Check for rust, bends, or other damage
Ensure frames are properly anchored to the floor
Wire decking is essential for stability, load support, and fire safety compliance. While it doesn’t carry as much weight as beams, it distributes the load and provides additional support.
Wire gauge and mesh pattern
Number of support channels
Compatibility with beam profile
Even pallet placement
Example: Standard wire decking may hold 1,500–2,500 lbs per level. Heavy-duty models can hold more.
Ensure decking is rated for the intended load
Avoid point loads on unsupported wire
Replace damaged or bent decking immediately
To determine the total system capacity, you need to evaluate each component and how they work together.
Start with beam capacity per level.
Confirm upright frame capacity for the total bay.
Check wire decking capacity to ensure proper support.
Multiply per level capacity by the number of beam levels.
Apply a safety factor of at least 1.5 to avoid overloading.
Important: The lowest-rated component determines the total capacity of the racking system.
Even a well-designed pallet rack system can become unsafe without regular inspections.
Check for bent or rusted beams and frames
Ensure bolts and anchors remain secure
Replace damaged wire decking promptly
Confirm load labels are visible and accurate
Keep pallets evenly distributed on beams
Regular maintenance not only prevents accidents but also extends the life of your racking system.
Verifying pallet rack load capacity isn’t just a safety requirement — it’s a smart investment in operational efficiency. By understanding the capacity of your beams, upright frames, and wire decking, you can prevent overloading, minimize risks, and ensure your warehouse runs smoothly.
A safe warehouse starts with a strong, properly rated racking system. Take the time to check and verify your load capacity — it pays off in safety and performance.
This checklist will guide you through verifying the load capacity of each part of your pallet rack system to ensure maximum safety and performance.

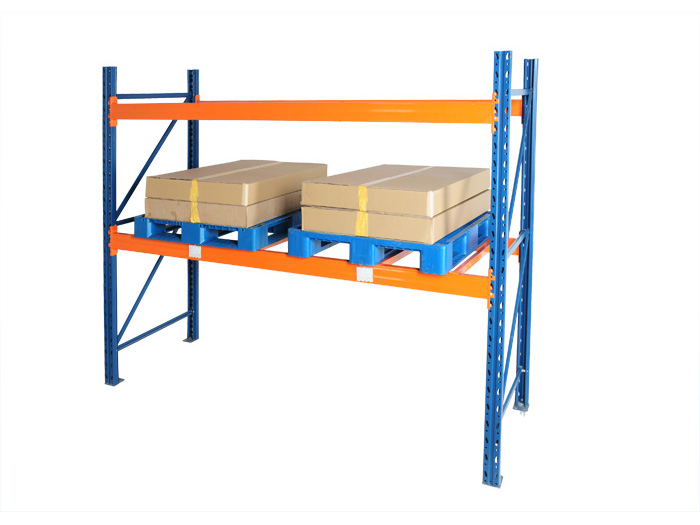

What Is Pallet Rack Load Capacity?
Pallet rack load capacity refers to the maximum amount of weight your racking system can safely support. This includes not only the pallet loads themselves but also the weight distributed across beams, frames, and decking.
A few key factors influence total load capacity:
Beam span and thickness
Frame strength and height
Wire decking material and support structure
Load distribution and pallet weight
Installation quality and floor anchoring
Tip: Always verify the rated capacity from the manufacturer and avoid estimating by eye.

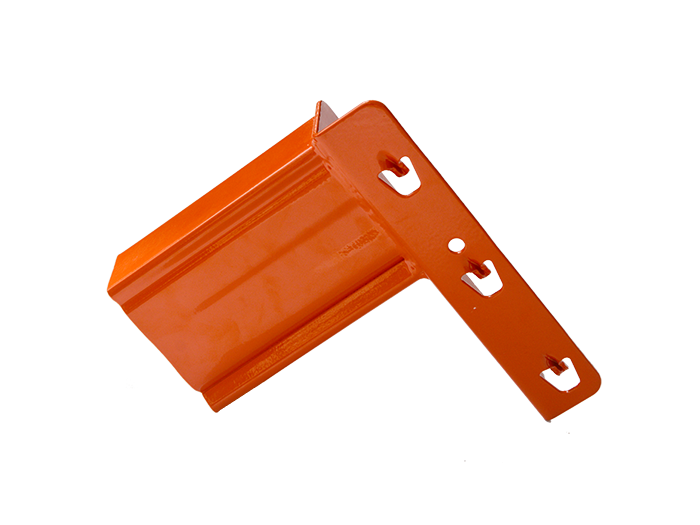

2. Pallet Rack Beam Capacity
Beams are one of the most important structural components in a pallet rack system. They support the pallet loads directly, so their capacity determines how much weight each level can hold.
Key factors affecting beam capacity:
Beam length and profile: Longer beams have lower load capacity.
Material thickness: Heavy-duty steel beams support more weight.
Load distribution: Evenly distributed loads perform better than point loads.
Example: A 96-inch beam might hold 4,000 lbs, while a 108-inch beam of the same profile may only hold 3,500 lbs.
Checklist:
Confirm manufacturer’s rated capacity
Match beam capacity to pallet weight
Avoid exceeding span-to-load ratio

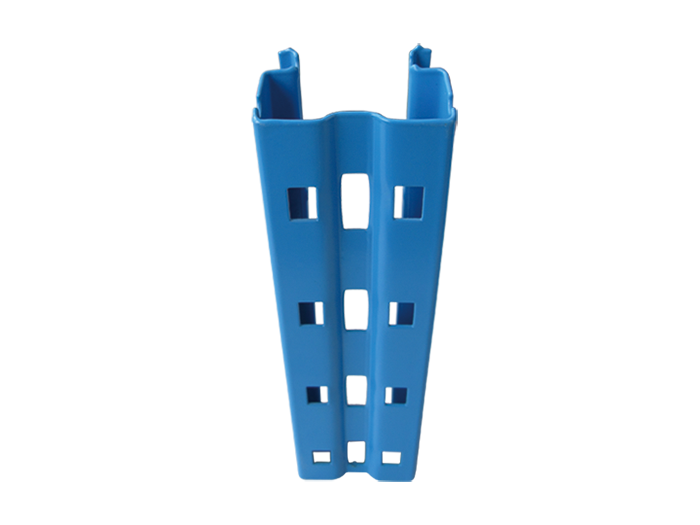

3. Pallet Rack Upright Frame Capacity
Upright frames provide the vertical support for the racking structure. Their load capacity determines how much weight the entire bay can support safely.
What affects upright frame capacity:
Frame height — taller frames may reduce overall capacity.
Column design — structural profiles (e.g., teardrop vs. structural) vary in strength.
Bracing pattern — better bracing improves load distribution.
Anchoring — floor bolts and installation method significantly impact performance.
Checklist:
Verify upright frame capacity matches beam and pallet load
Check for rust, bends, or other damage
Ensure frames are properly anchored to the floor

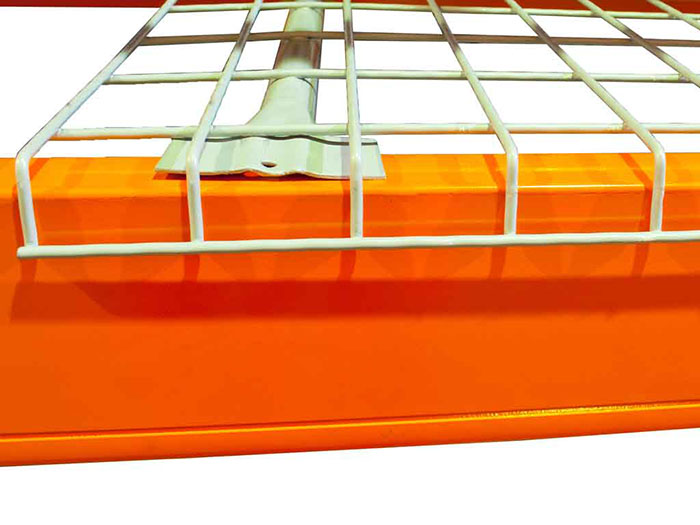

4. Pallet Rack Wire Decking Load Capacity
Wire decking is essential for stability, load support, and fire safety compliance. While it doesn’t carry as much weight as beams, it distributes the load and provides additional support.
Factors to check:
Wire gauge and mesh pattern
Number of support channels
Compatibility with beam profile
Even pallet placement
Example: Standard wire decking may hold 1,500–2,500 lbs per level. Heavy-duty models can hold more.
Checklist:
Ensure decking is rated for the intended load
Avoid point loads on unsupported wire
Replace damaged or bent decking immediately
5. Total System Capacity Calculation
To determine the total system capacity, you need to evaluate each component and how they work together.
Steps to calculate:
Start with beam capacity per level.
Confirm upright frame capacity for the total bay.
Check wire decking capacity to ensure proper support.
Multiply per level capacity by the number of beam levels.
Apply a safety factor of at least 1.5 to avoid overloading.
Important: The lowest-rated component determines the total capacity of the racking system.
6. Inspection and Maintenance Tips
Even a well-designed pallet rack system can become unsafe without regular inspections.
Check for bent or rusted beams and frames
Ensure bolts and anchors remain secure
Replace damaged wire decking promptly
Confirm load labels are visible and accurate
Keep pallets evenly distributed on beams
Regular maintenance not only prevents accidents but also extends the life of your racking system.
7. Final Thoughts & Best Practices
Verifying pallet rack load capacity isn’t just a safety requirement — it’s a smart investment in operational efficiency. By understanding the capacity of your beams, upright frames, and wire decking, you can prevent overloading, minimize risks, and ensure your warehouse runs smoothly.
A safe warehouse starts with a strong, properly rated racking system. Take the time to check and verify your load capacity — it pays off in safety and performance.
-
-
