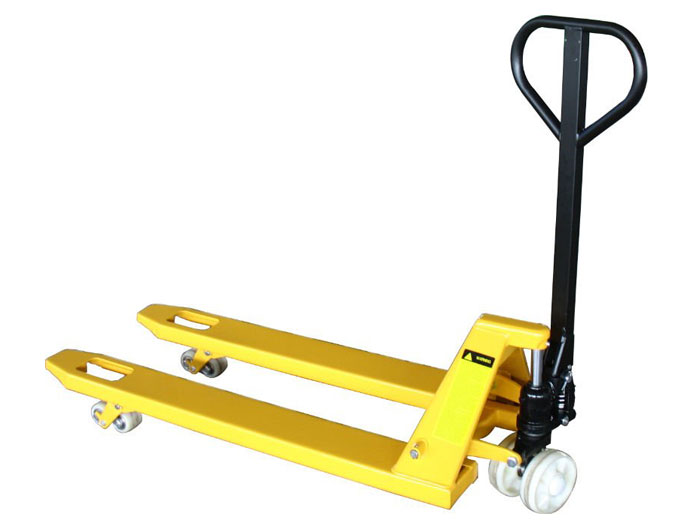

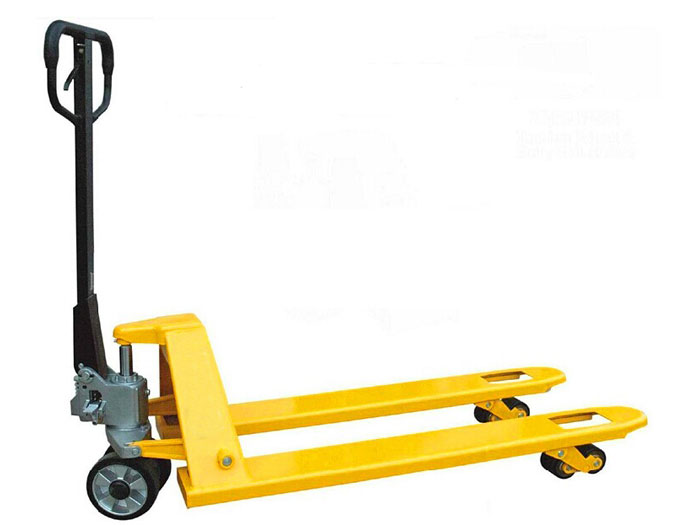

China Hand Pallet Truck Description:
Mobile hand pallet trucks efficiently move Materials with little effort. They are customisable, making them suitable for a broad range of material handling applications, including horizontal transport, order picking, loading/unloading and stacking. Each model has an ergonomically designed handle and constructed from durable solid steel lifting roads for extra strength.

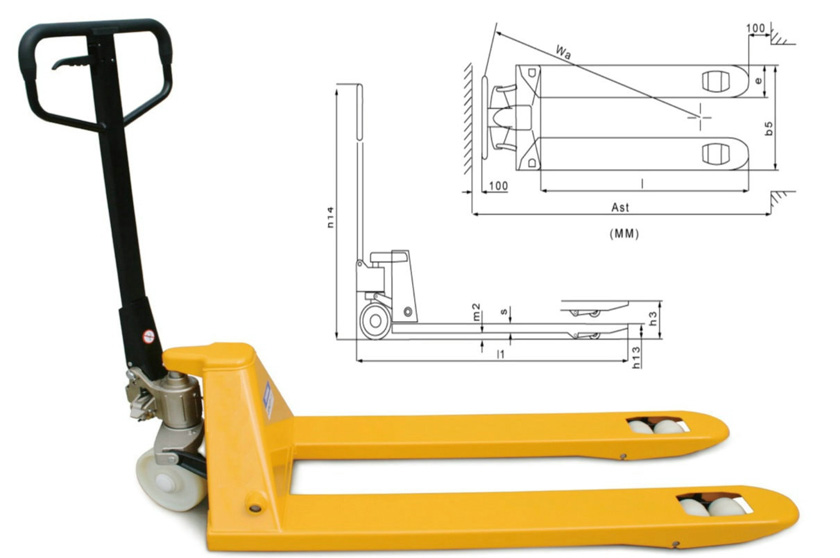

SPECIFICATION
|
MODEL
|
MODEL
|
MODEL
|
Load Capacity (kg)
|
2000
|
2500
|
3000
|
Lift height H (mm)
|
190
|
195
|
195
|
Low Fork Height H (mm)
|
75
|
85
|
85
|
High Fork Height L (mm)
|
115
|
110
|
110
|
Fork W*L (mm)
|
550*1150 685*1220
|
550*1150
|
550*1150 685*1220
|
Bracket Inner Width D (mm)
|
230 365
|
230 365
|
230 365
|
Bracket Single Fork (mm)
|
160
|
160
|
160
|
Front Wheel Diameter (mm)
|
70*60
|
80*70
|
80*70
|
Hand Pallet Truck Feature:
1. Handbrake/drive hand pallet truck
2. Easy 3 position control handle– Raise, Lower, Neutral.
3. Ergonomic rubber wrapped handle, which is comfortable and convenient to operate.
4. Fork Lowering speed is controllable, operated by hand control and foot pedal.
5. Integrated casting pump without welding, with safety overload&bypass system
6. Hand pallet truck is with entry & exit rollers
7. Tope Balanceable reinforced fork frame
8.Solid steel lifting rods for extra strength
9.Options: Nylon wheel, Rubber Wheel, single fork load wheel or tandem fork load wheel
Why Choose us:
High capacity and stability
Easy to assemble and foldable
Low price especially at high quality
Small volume is convenient for transport
Customized is welcomed according to customer’s drawings
