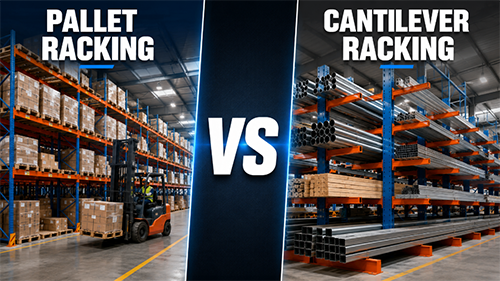

Are Cantilever Racks a Type of Pallet Racking

Introduction

No, cantilever racks are not a type of pallet racking. Although both systems are widely used in warehouses and industrial facilities, they are designed for different load types, storage methods, and operational requirements. Pallet racking is engineered for palletized goods, while cantilever racking is specifically designed to store long, bulky, or irregularly shaped materials that cannot be efficiently handled on standard pallets.

Understanding the differences between these two storage systems is important for selecting the right solution, improving warehouse efficiency, and maintaining safe material handling practices. Choosing the wrong storage system can reduce storage density, increase handling costs, and create unnecessary operational challenges.

What Is Pallet Racking?

Pallet racking is one of the most commonly used warehouse storage systems in modern logistics and industrial facilities. It is specifically designed to store goods placed on pallets, allowing forklifts to load, retrieve, and manage inventory efficiently.

A typical pallet racking system consists of upright frames, horizontal load beams, and optional accessories such as wire decking, pallet supports, and row spacers. Together, these components create a stable structure capable of supporting palletized loads while maximizing vertical warehouse space.

Common Types of Pallet Racking

• Selective Pallet Racking
• Drive-In Pallet Racking
• Push-Back Racking
• Pallet Flow Racking
• Double-Deep Pallet Racking

Typical Applications

• Distribution Centers
• Retail Supply Chains
• Manufacturing Warehouses
• E-commerce Fulfillment Facilities
• Third-Party Logistics Operations

The primary purpose of pallet racking is to increase storage density while maintaining direct forklift access to inventory. For facilities handling large volumes of palletized products, pallet racking remains the industry standard.

What Is a Cantilever Rack?

A cantilever rack is a specialized industrial storage system designed for long, bulky, or irregular materials that cannot be efficiently stored on conventional pallet racking systems.

Unlike pallet racks, cantilever racks use horizontal arms extending from vertical columns. This open-front structure removes the obstruction created by front uprights, making it easier to load and unload oversized materials using forklifts, side loaders, or overhead cranes.

Materials Commonly Stored on Cantilever Racks

• Steel Pipes and Tubing
• Lumber and Timber
• Metal Bars and Rods
• Structural Steel Sections
• PVC Pipes
• Aluminum Profiles
• Sheet Metal and Steel Plates

Key Differences Between Cantilever Racks and Pallet Racking

Although cantilever racks and pallet racking systems are both used for industrial storage, they are engineered for completely different material types and operational requirements. Understanding these differences helps warehouse managers select the most efficient storage solution for their facility.

The choice between the two systems should be based on material dimensions, handling methods, inventory characteristics, and available warehouse space rather than simply storage capacity.

Structural Design Comparison

The structural design of a storage system directly affects load distribution, accessibility, and warehouse efficiency. Pallet racks and cantilever racks use different engineering approaches to support stored materials.

The open-front design of cantilever racks makes them particularly suitable for storing materials that would be difficult to place within the upright frames of conventional pallet racking systems.

Load Type Comparison

The type of inventory being stored is usually the deciding factor when selecting between cantilever racks and pallet racking systems.

Material Handling Comparison

Handling efficiency is another major factor that differentiates these storage systems. The equipment used and the loading direction can significantly affect warehouse productivity.

For facilities handling pipes, timber, steel bars, or structural profiles, cantilever racks typically provide better accessibility and safer material handling than pallet racking systems.

Why Cantilever Racks Are Not Classified as Pallet Racking

Although both systems are used for industrial storage, cantilever racks and pallet racking are classified as different storage solutions because they are engineered around completely different load characteristics and operational requirements.

In warehouse design, storage systems are typically categorized according to how loads are supported, how materials are handled, and what type of inventory they are intended to store. Under these criteria, cantilever racking falls into a separate category from traditional pallet racking systems.

Different Load Distribution Methods

Pallet racks are designed around concentrated pallet loads. The load is transferred through the pallet deck onto horizontal beams and then distributed to the upright frames.

Cantilever racks use horizontal arms that support materials directly. Long products often span multiple arms simultaneously, creating a distributed load pattern that differs significantly from pallet-based storage.

Different Storage Objectives

Pallet racking is primarily designed to maximize inventory density and SKU accessibility. It works best when products are stored on standardized pallets and moved frequently through warehouse operations.

Cantilever racking is designed to improve access to oversized or irregular materials that would be difficult to store within conventional pallet rack frames.

Different Material Handling Requirements

Pallet racking is optimized for forklifts carrying palletized goods. Cantilever systems may be serviced by forklifts, side loaders, overhead cranes, or specialized handling equipment depending on the material length and weight.

When Should You Use Cantilever Racks?

Cantilever racks are often the preferred solution when storing products that are difficult to palletize or exceed the dimensions typically supported by standard pallet racks.

Industries such as steel processing, metal fabrication, construction supply, and timber distribution frequently use cantilever racking to improve storage efficiency and material accessibility.

When Should You Use Pallet Racking?

Pallet racking is the preferred choice whenever products are stored on pallets and inventory density is a primary operational objective.

• Distribution Centers
• Retail Warehouses
• Food & Beverage Storage
• E-commerce Fulfillment Facilities
• Manufacturing Inventory Storage
• Third-Party Logistics Operations

Because pallet racks provide direct access to palletized inventory, they remain the most widely used warehouse storage system worldwide.

Industrial Applications

Engineering Selection Guide

The most effective way to choose between cantilever racks and pallet racking is to evaluate the characteristics of the materials being stored.

Selecting the appropriate storage system can improve warehouse productivity, reduce handling time, increase storage efficiency, and support long-term operational safety.

Can Cantilever Racks Be Used With Pallets?

Technically, pallets can sometimes be placed on cantilever rack arms. However, this configuration is generally considered a special application rather than a recommended storage practice.

Cantilever racks are engineered to support long materials directly on their arms, while pallet racks are specifically designed around pallet dimensions, pallet loads, and forklift operations. Using cantilever racks for pallet storage may reduce storage efficiency and create unnecessary handling challenges.

Potential Limitations of Using Pallets on Cantilever Racks

• Reduced storage density compared with pallet racking.
• Less efficient pallet handling operations.
• Potential uneven load distribution.
• Higher risk of improper pallet placement.
• Limited compatibility with warehouse optimization strategies.

For these reasons, most warehouse designers recommend selecting the storage system that matches the intended inventory type rather than attempting to use one system for all applications.

Final Verdict

Cantilever racks are not a type of pallet racking. Although both systems are widely used in industrial storage environments, they are designed for different material types and operational requirements.

Pallet racking is engineered for palletized inventory and high-density warehouse storage. Cantilever racking is engineered for long, bulky, and irregular materials that require open-front access and flexible handling methods.

Choosing the correct storage system should be based on material characteristics, handling equipment, warehouse layout, and operational goals. In many industrial facilities, pallet racking and cantilever racking work together to create a complete and efficient storage solution.
