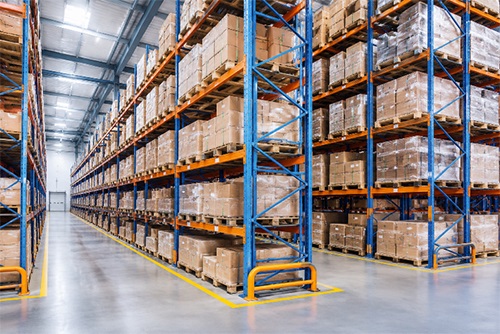

Standard Pallet Rack Dimensions: Size & Capacity Guide

Choosing the right pallet rack dimensions is essential for warehouse safety, storage density, and efficient forklift operation. While pallet racks can be customized based on warehouse requirements, most industrial storage systems follow standard dimensions designed around common pallet sizes and handling equipment.

Fully designed according to international industry standards including European FEM guidelines, American RMI standards, and Australian Standard AS4084, standard pallet racks are engineered to provide reliable pallet compatibility, safe loading performance, and efficient warehouse layouts for businesses of all sizes.

Standard pallet rack systems feature commonly used upright frame depths, heights, and beam lengths to meet different storage requirements. Understanding these dimensions helps warehouse managers select the right rack configuration, maximize available space, and avoid problems caused by improper pallet fit or insufficient clearance.

Standard Pallet Rack Upright Frame Dimensions

Industry-standard pallet racks feature standardized core specifications for universal warehouse applications. Common upright frame depths include 36", 42", and 48", with 42" and 48" being the most widely used options for standard pallet storage.

The upright depth should match the pallet size while maintaining proper front and rear clearance. For example, a 42" deep upright frame is commonly selected for 48" deep pallets because it provides sufficient support while allowing safe forklift handling.

Upright heights typically range from 8ft to 24ft, covering different warehouse applications from low-level manual picking to high-bay storage systems requiring maximum vertical space utilization.

Standard Pallet Rack Dimensions Table

Note: Load capacity specifications may vary depending on rack configuration, beam selection, bracing structure, and engineering requirements.

Standard Pallet Rack Beam Dimensions

For beam and bay dimensions, 96" single-pallet bays are commonly used in narrow warehouse layouts, while 96"–108" double-pallet bays provide an excellent balance between storage density and forklift accessibility.

Extended beam lengths up to 144" are available for warehouses requiring higher storage volume. Standard beams typically support 2–3 inch height adjustment, allowing flexible adaptation for different pallet heights and cargo sizes.

Pallet Size Compatibility with Standard Pallet Racks

Standard pallet rack dimensions are mainly designed around commonly used pallet sizes worldwide. Choosing the correct rack depth and beam length ensures stable pallet placement and prevents unsafe overhang or wasted storage space.

Common pallet sizes include:

Before selecting pallet rack dimensions, warehouse operators should confirm:

• Pallet length and width
• Maximum pallet weight
• Forklift type
• Required aisle width
• Available warehouse height

How to Choose the Right Pallet Rack Dimensions

Selecting the correct pallet rack size requires more than choosing a standard dimension. The ideal configuration depends on warehouse conditions, inventory requirements, and handling equipment.

1. Consider Pallet Size and Load Requirements

The rack depth should properly support the pallet without excessive overhang. The beam length should also match the number of pallets stored per bay while maintaining safe clearance.

Oversized racks may waste valuable warehouse space, while undersized racks can create unsafe pallet positioning.

2. Consider Warehouse Height

The available building height directly affects rack height selection.

• Low warehouses may use 8ft–16ft rack heights for easy access.
• Medium-height warehouses commonly use 16ft–24ft systems.
• High-bay warehouses may require customized solutions with specialized handling equipment.

3. Consider Forklift Operation

Forklift type plays an important role in determining aisle width and rack layout.

Different equipment, including:

• Reach trucks
• Counterbalance forklifts
• Very narrow aisle forklifts

may require different warehouse layouts and rack dimensions.

Why Standard Pallet Rack Dimensions Matter

Adopting standard pallet rack dimensions brings significant practical advantages. It eliminates pallet overhang and unstable placement, reducing the risk of cargo damage caused by improper sizing.

Uniform rack specifications maximize warehouse space utilization and improve storage density compared with irregular storage solutions. Standard components are also easier to replace, expand, relocate, or modify, helping reduce long-term maintenance and renovation costs.

Built for high-intensity logistics environments, these standardized racks are widely used in:

With reliable structural performance and compliance with international standards, standard pallet racks remain one of the most cost-effective solutions for improving warehouse organization and storage efficiency.
