Which Is Better: Teardrop or Slotted Pallet Rack Uprights

What Are Pallet Rack Uprights and Why Do They Matter?

Pallet rack uprights are the vertical columns that form the backbone of any pallet racking system. They support beams, carry loads, and determine the structural integrity of the entire installation.

Key factors influenced by uprights include:

• Load capacity: Determines how much weight each bay can safely handle
• Adjustability: Hole patterns define beam positioning flexibility
• System compatibility: Impacts whether components from different brands can be used together
• Safety compliance: Affects stability, seismic resistance, and overall durability

Choosing the wrong upright type can lead to higher long-term costs, limited expansion, or even safety risks.

What Is a Teardrop Pallet Rack Upright?

Teardrop uprights feature a distinctive tear-shaped hole pattern that allows beams to lock into place without bolts. This design originated in the U.S. and is widely recognized under RMI (Rack Manufacturers Institute) standards.

Why Teardrop Is So Popular

The biggest advantage of teardrop systems is universality. Most manufacturers follow similar hole spacing, allowing cross-brand compatibility.

Advantages

• Fast installation: Boltless connection reduces labor time
• High compatibility: Beams from different suppliers can often be used interchangeably
• Flexible adjustment: Easy to reconfigure beam levels
• Lower total cost: Reduced installation and maintenance expenses

Limitations

• Moderate load capacity: Not ideal for extremely heavy loads
• Less structural rigidity: Compared to fully bolted systems
• Standardized design: Limited customization for special projects

What Is a Slotted (Structural) Pallet Rack Upright?

Slotted uprights, often referred to as structural uprights, use straight or rectangular holes and are typically connected using bolts. This creates a more rigid and heavy-duty structure.

Where Slotted Uprights Excel

They are commonly used in industrial warehouses, automated systems (AS/RS), and high-load applications where strength and durability are critical.

Advantages

• Higher load capacity: Suitable for heavy pallets and bulk storage
• Superior structural strength: Better resistance to impact and deformation
• Custom engineering: Ideal for tailored warehouse solutions
• Better for automation: Stable structure supports automated handling systems

Limitations

• Complex installation: Requires bolting and precise alignment
• Limited compatibility: Components are often brand-specific
• Higher upfront cost: Both material and labor costs are higher

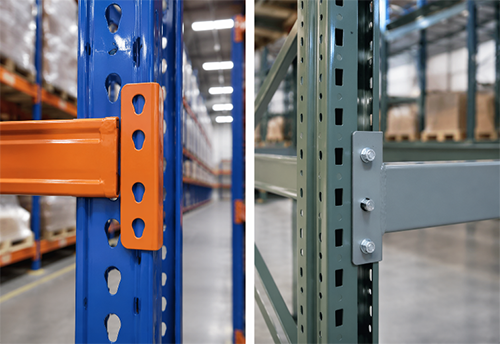

Teardrop vs Slotted Uprights: Detailed Comparison

Which Upright Type Is Better for Your Warehouse?

Teardrop Uprights Are Better If You:

• Operate a standard warehouse or 3PL facility
• Need quick installation or frequent layout changes
• Plan to expand or mix components in the future
• Want to reduce initial investment

Slotted Uprights Are Better If You:

• Store heavy industrial materials (steel, machinery, bulk goods)
• Require a customized racking solution
• Operate automated warehouse systems
• Prioritize long-term structural durability

Cost Analysis: Short-Term vs Long-Term Value

Teardrop systems are more cost-effective upfront due to simpler installation and standardized components. However, slotted systems may deliver better long-term value in heavy-duty environments due to reduced maintenance and higher durability.

When evaluating cost, consider:

• Initial equipment cost
• Installation labor cost
• Maintenance and repair frequency
• Future expansion or modification needs

Common Mistakes When Choosing Uprights

• Choosing based only on price without considering load requirements
• Ignoring compatibility with existing systems
• Underestimating future warehouse expansion
• Selecting insufficient load capacity, leading to safety risks

Conclusion

There is no universally "better" option between teardrop and slotted uprights. The right choice depends on your warehouse application, load requirements, budget, and future plans. For most standard operations, teardrop systems offer flexibility and cost efficiency, while slotted uprights are the preferred solution for heavy-duty and specialized environments.

Frequently Asked Questions

Are teardrop pallet racks truly universal?
Yes, most teardrop systems follow similar industry standards, allowing compatibility across multiple manufacturers.

Which type has higher load capacity?
Slotted (structural) uprights typically provide higher load capacity and better durability.

Can I mix teardrop and slotted systems?
No, due to different connection designs, they are generally not compatible.

Which system is better for warehouse expansion?
Teardrop systems are better suited for expansion due to their flexibility and compatibility.

Are slotted uprights worth the higher cost?
Yes, for heavy-duty applications where strength and durability are critical, they offer better long-term value.
