Narrow Aisle Racking

Time:7/2/2020687
Share:

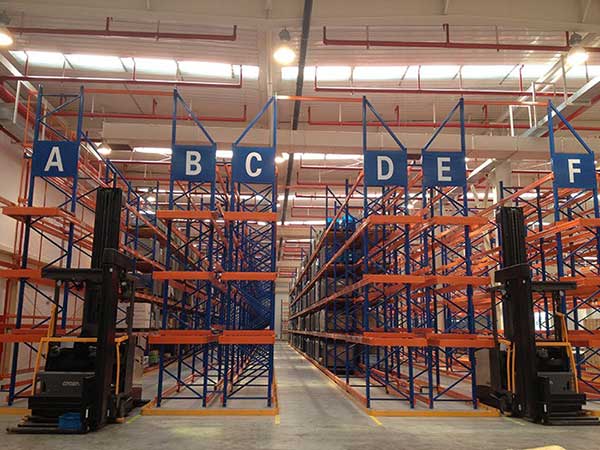

Narrow roadway pallet rack is mainly composed of column, crossbeam, cross brace, diagonal brace and self-locking bolt. The connection between crossbeam and column is mostly mechanical lock structure, which can be disassembled and assembled at will. Narrow aisle shelf is called narrow aisle or narrow aisle rack because the forklift transportation channel of its shelf system is narrower than that of other shelves.
The main part of the narrow aisle shelf system is a beam type shelf system, the difference is that a "three-way stacking forklift" moving guide rail is installed in the air at the bottom of the shelf. The guide rail is usually made of unequal angle steel. The material handling forklift is limited to a special "three-way stacking forklift". The three-way stacker truck slides along the established guide rail. The width of the stacking channel of the shelf system is slightly larger than the width of the pallet goods, so the high-density storage needs can be completed. At the same time, it inherits all the advantages of the crossbeam rack system, and all the materials stored in the rack system are highly optional. The forklift can store any pallet of goods at any time. Fast storage efficiency, very high storage density, as for the storage and logistics center which is suitable to adopt narrow aisle shelf system, it brings significant consumption efficiency and cost-effectiveness.
The characteristic of narrow lane shelf is that the channel is much narrower than the common cross beam shelf, about 1600mm-2000mm, which greatly improves the space application rate of the warehouse. In today's soaring house price, narrow lane shelf is liked by many enterprise warehouses; This shelf needs to be equipped with a special forklift truck, the three-way stacker, which is another feature of it. Due to the narrow channel, it appeals for the skills of the forklift driver. The driving skills should be more skilled, and the normal work should be careful.
