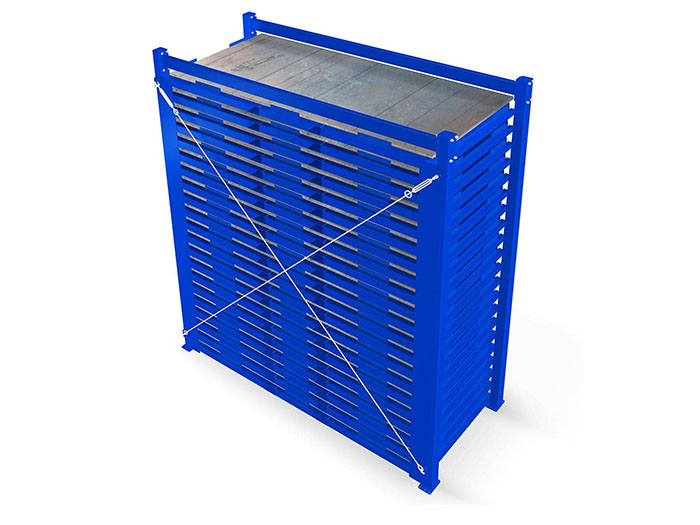

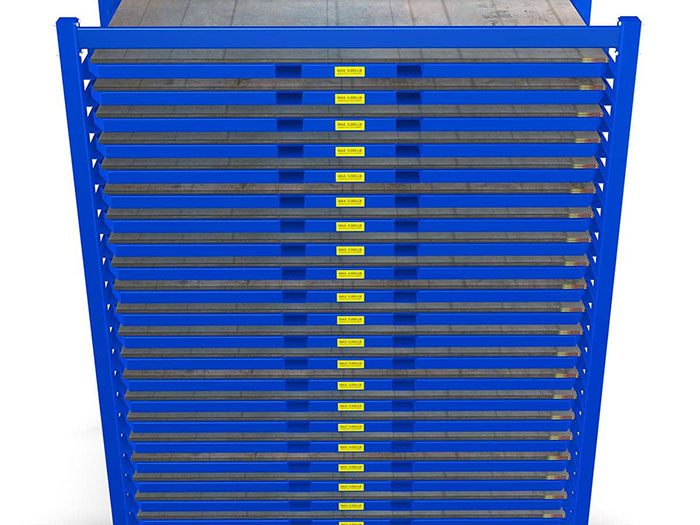

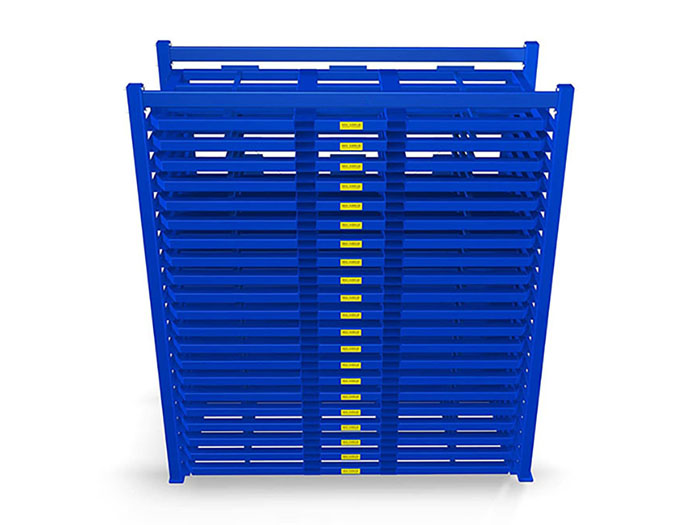

Roll Out Sheet Tower Rack

item No: RO-ST-005
Spieth Roll Out Sheet Tower Rack is a heavy-duty sheet metal rack designed for high-density storage of steel sheets, stainless steel, aluminum, and other flat materials. With independent roll-out cartridges, robust construction, and customizable designs, it helps manufacturers improve material organization, handling efficiency, and workspace utilization.

ADD TO FAVORITES INQUIRY NOW

Collections: Warehouse Racking System > Sheet Metal Rack

DESCRIPTION

Packaging & Shipping

FAQ

The Spieth Roll Out Sheet Tower Rack is a heavy-duty storage system designed for organizing and handling large sheet materials in industrial environments. Using a multi-level roll-out cartridge design, it provides organized storage, quick material access, and efficient forklift handling while maximizing available floor space.

Each cartridge stores sheet bundles independently, allowing operators to retrieve specific materials without disturbing other stored inventory. This design improves material organization, reduces unnecessary handling, and helps protect sheet surfaces during storage and transportation.

Suitable for carbon steel, stainless steel, aluminum, and other flat materials, the Roll Out Sheet Tower Rack is widely used in laser cutting workshops, sheet metal fabrication plants, steel service centers, and other manufacturing facilities requiring high-density sheet storage solutions.

Design Highlights

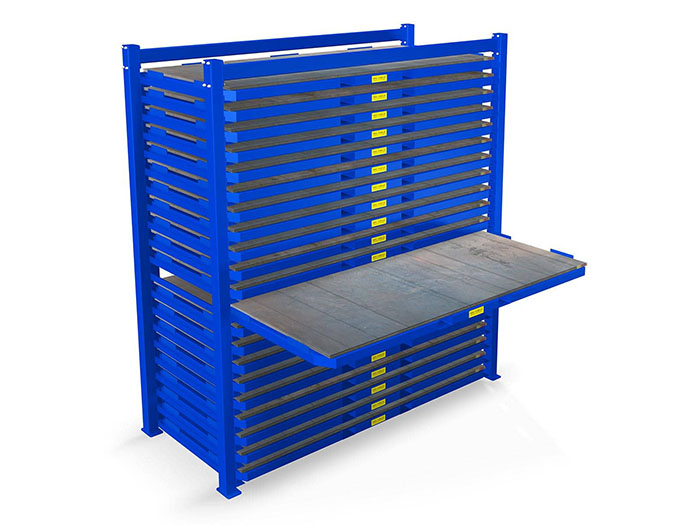

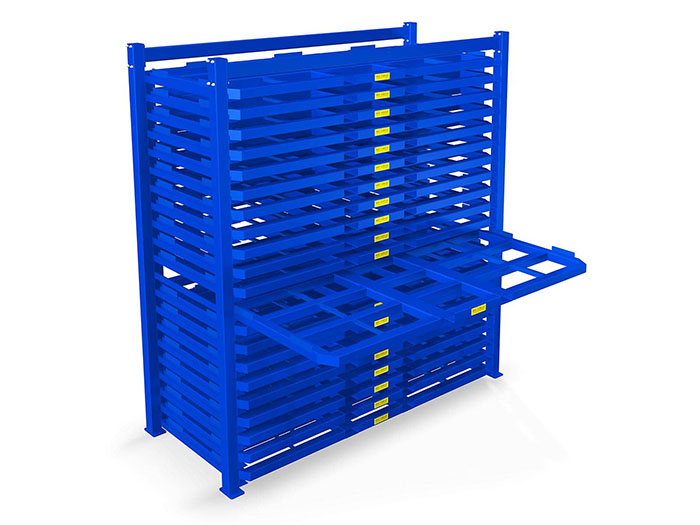

Independent Roll-Out Cartridge System

Each storage level is equipped with an independent cartridge that can be rolled out separately for loading and unloading sheet materials. This design allows operators to access specific materials directly without moving other stored sheets.

Multi-Level Tower Storage Structure

The vertical tower configuration allows multiple sheet bundles to be stored within a compact footprint. By utilizing available height instead of floor space, the system helps manufacturers increase storage capacity while maintaining an organized workspace.

Forklift-Compatible Material Handling

The removable cartridges are designed for efficient forklift operation, allowing heavy sheet materials to be loaded, transported, and positioned safely. This improves handling efficiency in production environments where large metal sheets are frequently moved.

Heavy-Duty Structural Design

The rack frame is manufactured from high-strength steel components to provide stable support for heavy sheet materials. The robust structure is suitable for continuous industrial applications including metal fabrication and sheet processing facilities.

Safety Retaining Features

Designed with material security in mind, the storage cartridges can include retaining edges to help prevent sheet movement during handling. This provides additional protection when transporting large and smooth sheet materials.

Custom Configuration Options

Spieth Roll Out Sheet Tower Rack can be customized according to sheet dimensions, storage capacity, and facility requirements. Tower height, cartridge size, storage levels, and other design details can be adapted for different applications.

Technical Specifications

The Spieth Roll Out Sheet Tower Rack is designed with flexible configurations to meet different sheet storage requirements. Specifications such as cartridge dimensions, tower height, and load capacity can be customized according to material size, weight, handling methods, and facility layout.

Item	Specification
Product Type	Roll Out Sheet Tower Rack
Storage Design	Multi-level roll-out cartridge storage system
Structure Material	High-strength structural steel
Surface Finish	Durable powder coated finish
Cartridge Capacity	Up to 5,000 lbs (2,270 kg) per cartridge*
Cartridge Size	Standard and customized sizes available
Tower Height	Customized according to workshop height and storage requirements
Storage Levels	Multiple levels available based on capacity requirements
Compatible Materials	Carbon steel sheets, stainless steel sheets, aluminum sheets, and other flat materials
Material Handling	Forklift loading and unloading
Installation Type	Floor mounted installation
Customization	OEM and project-based customization available

*Actual load capacity depends on rack configuration, cartridge design, material dimensions, and application requirements.

Available Configuration Options

To meet different production environments, Spieth provides customized configuration options for sheet tower storage systems.

Configuration Item	Available Options
Tower Height	Customized according to available installation space
Cartridge Dimensions	Different sizes available for various sheet formats
Number of Storage Levels	Configured according to storage capacity requirements
Load Capacity	Designed based on sheet weight and application conditions
Surface Treatment	Powder coating with customized finishing options
Color Selection	Standard colors or RAL custom colors available
Safety Accessories	Optional safety features available according to application needs
Identification System	Optional labels and marking solutions for inventory management

Key Features of Spieth Roll Out Sheet Tower Rack

Designed for demanding industrial environments, the Spieth Roll Out Sheet Tower Rack combines heavy-duty construction, efficient material handling, and flexible customization to provide a reliable storage solution for large sheet materials.

1. Heavy-Duty Steel Construction

The Roll Out Sheet Tower Rack is manufactured with a robust steel structure designed to support heavy sheet materials in industrial applications. Reinforced components provide excellent stability during storage and material handling, ensuring reliable performance in fabrication plants, steel processing facilities, and manufacturing workshops.

The structure can be engineered according to specific load requirements, material dimensions, and operational conditions, allowing the system to meet different industrial storage needs.

2. Independent Roll-Out Cartridge System

Each storage level is equipped with an independent cartridge that allows individual access to stored sheet materials. Operators can retrieve the required material without moving other sheets stored in the tower.

This design simplifies material management, reduces unnecessary handling operations, and helps maintain a more organized storage environment.

3. High-Density Storage for Limited Floor Space

The vertical tower configuration allows multiple sheet bundles to be stored within a compact footprint. By utilizing available vertical space, manufacturers can increase storage capacity without expanding their workshop area.

This makes the system especially suitable for production facilities where floor space is limited but material inventory requirements continue to grow.

4. Efficient Material Handling with Forklift Operation

Large metal sheets often require mechanical equipment for safe transportation. The Roll Out Sheet Tower Rack is designed to work with forklift handling, allowing cartridges and sheet materials to be loaded, positioned, and transferred efficiently.

This improves workflow efficiency while reducing manual handling risks in busy production environments.

5. Flexible Custom Engineering

Every manufacturing facility has different requirements for material sizes, storage volume, available space, and production workflow. Spieth provides customized sheet tower solutions based on actual application conditions.

Customization options include rack dimensions, cartridge configuration, storage capacity, surface finish, and additional accessories to ensure the system integrates effectively with existing operations.

Applications of Roll Out Sheet Tower Rack

The Spieth Roll Out Sheet Tower Rack is designed for industries that handle large quantities of sheet materials and require organized, space-efficient storage. Its flexible cartridge system makes it suitable for a wide range of manufacturing and metal processing applications.

Laser Cutting Facilities

Laser cutting operations require quick and reliable access to different sheet materials, thicknesses, and grades. The Roll Out Sheet Tower Rack helps organize steel, stainless steel, and aluminum sheets close to production areas, reducing material handling time and improving workflow efficiency.

Plasma Cutting and Waterjet Processing

Plasma and waterjet cutting applications often involve large and heavy metal sheets that require safe storage and efficient transportation. The tower storage design provides an organized solution for storing raw materials while supporting forklift-based loading and unloading.

Sheet Metal Fabrication Workshops

Fabrication facilities commonly handle various sheet sizes and materials throughout daily production. The Roll Out Sheet Tower Rack helps maintain better material organization by allowing different sheets to be stored separately and accessed efficiently when required.

Steel Service Centers

Steel service centers manage large volumes of sheet materials with different specifications. A high-density sheet storage system helps improve inventory organization, optimize warehouse space, and support efficient material distribution.

Machinery Manufacturing

Machinery manufacturers often require heavy steel plates and precision materials during fabrication processes. The Roll Out Sheet Tower Rack provides stable storage for these materials while helping maintain a cleaner and safer production environment.

Automotive and Industrial Manufacturing

Automotive and industrial manufacturers frequently work with different metal grades and sheet formats. A customized sheet tower storage solution allows manufacturers to organize materials according to production requirements and improve overall handling efficiency.

Why Choose Spieth as Your Sheet Storage Partner

Choosing the right sheet storage system requires more than selecting a standard rack. Industrial facilities need a solution that matches their material requirements, production workflow, and long-term operational goals. Spieth provides engineered Roll Out Sheet Tower Rack solutions designed for reliable performance in demanding manufacturing environments.

Engineering Support for Customized Solutions

Every production facility has different requirements for sheet dimensions, storage capacity, available space, and material handling methods. Spieth works with customers to develop customized sheet tower solutions based on actual application conditions.

From initial requirements analysis to final production drawings, our engineering team helps ensure the storage system fits the customer's operational needs.

Flexible Manufacturing Capability

As an experienced industrial storage equipment manufacturer, Spieth provides flexible production options for different project requirements. Tower dimensions, cartridge configurations, load capacity, and accessories can be customized to meet specific applications.

Quality-Focused Manufacturing Process

Spieth applies strict quality control throughout the manufacturing process, including material inspection, precision fabrication, welding inspection, surface treatment, and final product verification.

This manufacturing approach helps ensure consistent product quality and reliable performance during long-term industrial use.

OEM and Project-Based Production

Spieth supports OEM cooperation and project-based manufacturing for distributors, warehouse solution providers, and industrial customers. Our team can provide customized designs according to different market requirements and application environments.

Professional Export Support

With experience serving international customers, Spieth provides support throughout the purchasing process, including technical communication, production coordination, packaging solutions, and shipment preparation.

Frequently Asked Questions

1. What materials can be stored in a Roll Out Sheet Tower Rack?

The Spieth Roll Out Sheet Tower Rack is designed for storing various flat materials, including carbon steel sheets, stainless steel sheets, aluminum sheets, and other industrial sheet materials. The configuration can be adjusted according to material dimensions and weight requirements.

2. What is the maximum load capacity of each cartridge?

Standard configurations can support up to 5,000 lbs (2,270 kg) per cartridge. The actual capacity depends on the rack structure, cartridge design, material dimensions, and project requirements.

3. Can the sheet tower rack be customized?

Yes. Spieth provides customized solutions based on your storage space, sheet sizes, loading requirements, and workflow. Tower height, cartridge dimensions, storage levels, and other specifications can be adjusted for different applications.

4. How are materials loaded and removed from the rack?

The system is designed for forklift-assisted material handling. Sheet materials can be loaded onto cartridges and transported efficiently according to production requirements.

5. What sheet sizes can be stored?

The Roll Out Sheet Tower Rack can accommodate different sheet sizes, including standard formats and customized dimensions. Spieth can design cartridge sizes according to the customer's material specifications.

6. Does Spieth provide OEM manufacturing?

Yes. Spieth supports OEM and project-based manufacturing for industrial customers, distributors, and warehouse solution providers. Customized designs can be developed according to specific market or application requirements.

7. Is installation required after delivery?

Installation requirements depend on the project configuration. Spieth can provide technical guidance, installation documentation, and support according to customer requirements.

8. Can Spieth provide technical drawings before production?

Yes. For customized projects, Spieth can provide engineering communication and technical documentation to confirm design details before manufacturing.

Do you offer samples available?

Yes, samples are available. Sample lead time 3-5days generally.
Do you offer custom design?

Custom design is surely available. we have very rich experience in customizing shelves.
What is the term of payment?

Regularly, 30percentTT in advance,70percent against the copy of B/L.
What is your delivery time?

Usually: 1*20' GP container, around 15 days; 1*40'GP container, around 20days; For some urgent orders,will adjust as your requirement accordingly.
Are you manufacturer or trading company?

We are manufacturer. Our factory has been specializing in warehouse storage equipments for years. We warmly welcome you to visit our factory at anytime.
