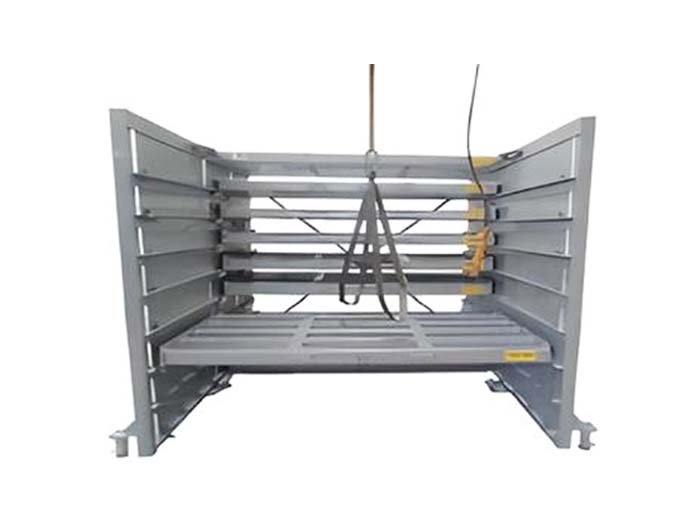

Fabrication Shop Sheet Metal Storage Rack

item No: SMR-004
Fabrication Shop Sheet Metal Storage Rack adopts all-steel structure and slide-out shelf design. Each layer can bear 5,500 pounds and supports various material extraction methods such as cranes and forklifts. It is equipped with ergonomic T-shaped handles and automatic locking system to ensure convenient and safe operation. A variety of standard sizes are available, and customized load-bearing capacity, size and color are supported. It is an ideal solution for metal processing workshops to efficiently and safely store sheet metal materials.

ADD TO FAVORITES INQUIRY NOW

Collections: Warehouse Racking System > Sheet Metal Rack

DESCRIPTION

Packaging & Shipping

FAQ

Fabrication Shop Sheet Metal Storage Rack | Heavy-Duty Slide-Out Sheet Rack

Fabrication & Laser Cutting Workshops

Fabrication Shop Sheet Metal Storage Rack

Improving metal processing efficiency starts with organized, safe and fast material access. The Fabrication Shop Sheet Metal Storage Rack is engineered for high-throughput fabrication environments, especially next to laser cutting, water-jet cutting and sheet metal processing equipment.

Each slide-out shelf supports up to 5,500 lbs with a full 100% extension, allowing operators to retrieve sheets directly using cranes, vacuum suction cups, hooks, magnetic lifters or forklifts without repositioning the rack.

			Designed to shorten handling time, reduce manual lifting and keep production flow uninterrupted
            in busy fabrication shops.


The rack adopts an all-steel welded structure and an ergonomic T-shaped handle to ensure smooth and low-effort operation. Integrated automatic locking rails maintain shelf stability during extension and retraction, providing an additional layer of operational safety.

Product Highlights

High Load, Full Extension Design

5,500 lbs load capacity per shelf as standard
100% slide-out structure for direct lifting access
Optional swing-out shelves for higher capacities up to 10,000 lbs

Multiple Material Handling Methods

Overhead crane with vacuum suction cups
Magnetic lifting devices and hooks
Manual hangers
Forklift access for direct handling

Operator-Focused Ergonomics

T-shaped handle for smooth and balanced pulling
Reduced physical effort during frequent operations
Optimized for high-cycle fabrication workshops

Integrated Safety Locking System

Automatic mechanical locking on extension and retraction
Prevents unintended shelf movement
Improves operator safety during loading and unloading

Industrial-Grade Structure & Finish

All-steel welded frame construction
Powder-coated surface for corrosion resistance
Eight standard colors available

Fully Customizable Configuration

Custom shelf sizes including oversized formats
Custom rack height up to 96 inches
Optional higher load capacities and layout adjustments

Materials and Technical Specifications

Item	Specification
Standard Loading Capacity	5,500 lbs per shelf
Optional Maximum Capacity	Up to 10,000 lbs per shelf (swing-out shelf design)
Operation Mode	Manual slide-out, 100% extension
Operating Handle	Ergonomic T-shaped handle
Number of Layers	4 – 8 layers (customizable)
Standard Shelf Sizes	48"x96", 48"x120", 60"x120", 60"x144", 72"x144"
Custom Sizes	Oversized shelves and higher structures supported
Construction	All-steel welded structure
Surface Treatment	Powder coating, multiple standard colors

Customization & Delivery

Each Fabrication Shop Sheet Metal Storage Rack is manufactured according to the actual layout, sheet formats and handling processes of your workshop. This project-based configuration ensures compatibility with both your production flow and existing lifting equipment.

Adjustable number of shelves and vertical spacing
Optional upgrade to 10,000-lb shelf capacity
Expanded shelf dimensions for large sheet formats
Custom colors and optional brand identification

Standard production lead time is approximately 6–8 weeks.

Why You Can Trust This Storage Solution

Engineering Expertise

The rack structure and sliding mechanism are engineered specifically for heavy plate and sheet handling in fabrication environments, focusing on load stability, long-term durability and operational safety.

Proven Manufacturing Experience

Manufactured by Aceally, a professional shelving and industrial storage equipment manufacturer with more than 20 years of production experience and extensive export projects for industrial and warehouse applications.

Application-Driven Design

The rack is designed around real fabrication workflows such as laser cutting, water-jet processing and heavy sheet staging, ensuring compatibility with cranes, magnetic lifters and vacuum handling systems.

Safety & Compliance Awareness

Automatic locking rails, welded load-bearing frames and controlled slide-out travel help reduce operational risks during daily material handling.

Do you offer samples available?

Yes, samples are available. Sample lead time 3-5days generally.
Do you offer custom design?

Custom design is surely available. we have very rich experience in customizing shelves.
What is the term of payment?

Regularly, 30percentTT in advance,70percent against the copy of B/L.
What is your delivery time?

Usually: 1*20' GP container, around 15 days; 1*40'GP container, around 20days; For some urgent orders,will adjust as your requirement accordingly.
Are you manufacturer or trading company?

We are manufacturer. Our factory has been specializing in warehouse storage equipments for years. We warmly welcome you to visit our factory at anytime.
