Industrial Storage Steel Platform | Warehouse Mezzanine Systems

item No: SST-017
Boost warehouse capacity with our heavy-duty industrial steel platform. Custom mezzanine design, high load-bearing, fast installation. Request a free layout today!

ADD TO FAVORITES INQUIRY NOW

Collections: Warehouse Racking System > Mezzanine Floor Pallet Racking

DESCRIPTION

Packaging & Shipping

FAQ

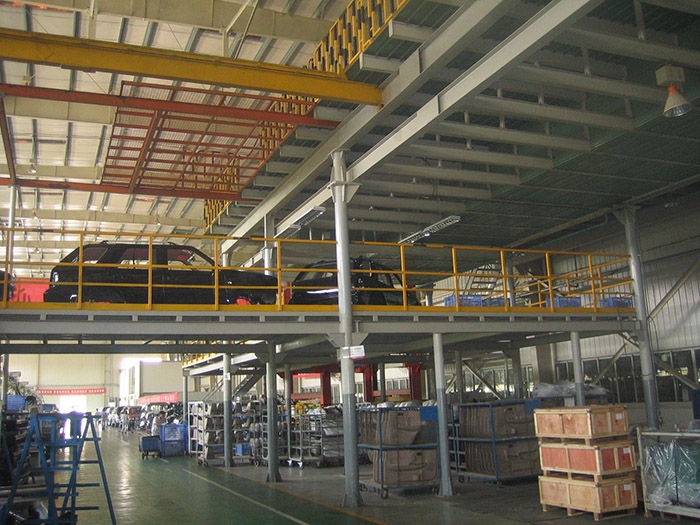

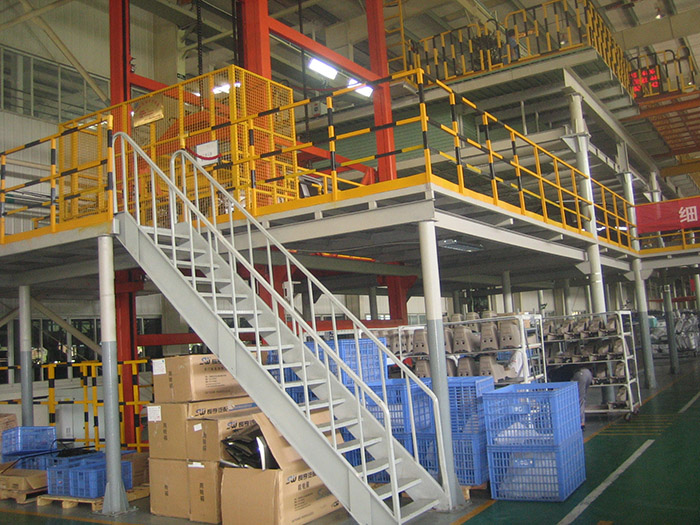

Maximize your warehouse space with our Industrial Storage Steel Platform, designed to increase capacity without expanding your floor area. With a high-strength steel structure and modular design, it creates extra storage or working space and can be seamlessly integrated with a Warehouse Racking System to support efficient picking and conveyor operations.

Beyond space utilization, steel platforms also enhance workplace safety and productivity. Widely used in warehouses, factories, and logistics facilities, they provide a stable and durable elevated solution for safe access, storage, assembly, and maintenance tasks.

Key Features

Space Optimization – Double or triple your usable floor space without relocation or expansion.

Heavy-Duty Load Capacity – Engineered with robust steel structure for loads from 300 kg/m² to over 1000 kg/m².

Modular & Customizable Design – Tailored sizes, floor types, railings, and stairs to meet your warehouse layout.

Quick Installation – Pre-engineered components ensure fast assembly and minimal disruption.

Safety Compliant – Equipped with guardrails, anti-slip flooring, and certified for industrial standards.

Applications

Our steel platform systems are widely used across various industries, including:

Warehousing & Logistics

E-commerce Fulfillment Centers

Automotive Parts Storage

Manufacturing Facilities

Retail Backrooms & Distribution Centers

Technical Specifications

Structure Material: High-quality cold-rolled steel

Load Capacity: 300–1000+ kg/m²

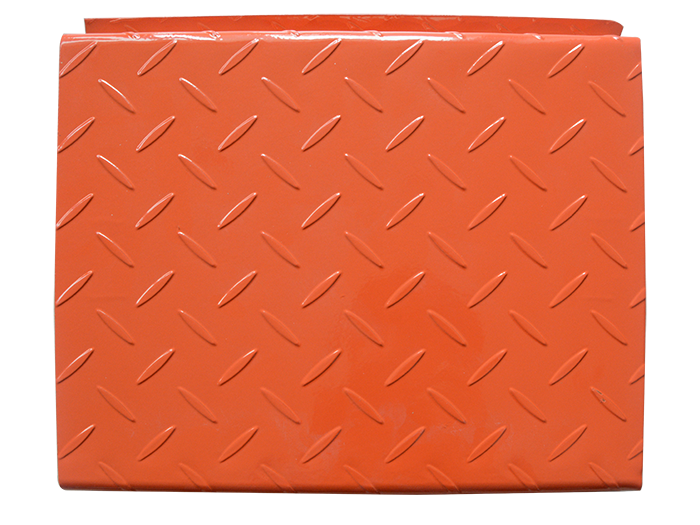

Floor Options: Steel grating/plywood/checker plate

Height Range: 2.5m – 5.5m

Surface Treatment: Powder-coated / galvanized

Safety Accessories: Guardrails, staircases, pallet gates

How Steel Platforms Work

Steel platforms work by using a strong steel framework to create an elevated level inside a building.

Here’s how they work step by step:

Steel columns are installed on the floor to support the entire structure.

Beams are fixed onto the columns to form the load-bearing frame.

Decking panels are placed on top of the beams to create the upper working or storage surface.

Stairs and guardrails are added so workers can safely access and use the platform.

This elevated structure allows businesses to use the vertical space in their warehouse or facility, effectively doubling the usable area without expanding the building.

FAQ

Q1: Can the steel platform be dismantled and relocated?

A: Yes, our modular design allows the platform to be disassembled and reinstalled at another location.

Q2: How do I know what size or layout I need?

A: Send us your warehouse dimensions and storage requirements—we'll provide a free design proposal.

Q3: Is this system compatible with forklifts or conveyors?

A: Yes, we can integrate lift gates, conveyors, and other systems into the mezzanine structure.

Do you offer samples available?

Yes, samples are available. Sample lead time 3-5days generally.
Do you offer custom design?

Custom design is surely available. we have very rich experience in customizing shelves.
What is the term of payment?

Regularly, 30percentTT in advance,70percent against the copy of B/L.
What is your delivery time?

Usually: 1*20' GP container, around 15 days; 1*40'GP container, around 20days; For some urgent orders,will adjust as your requirement accordingly.
Are you manufacturer or trading company?

We are manufacturer. Our factory has been specializing in warehouse storage equipments for years. We warmly welcome you to visit our factory at anytime.
