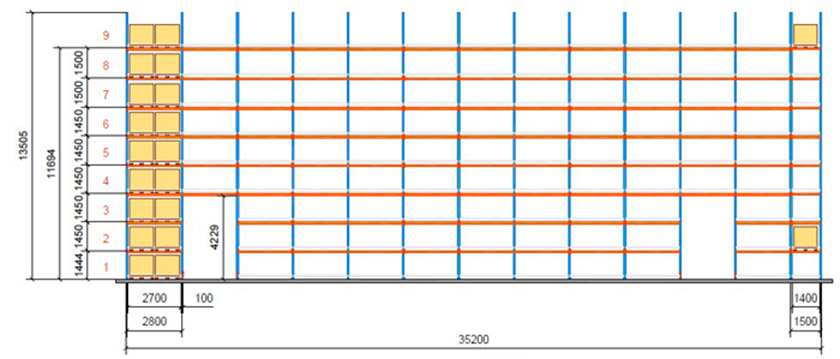

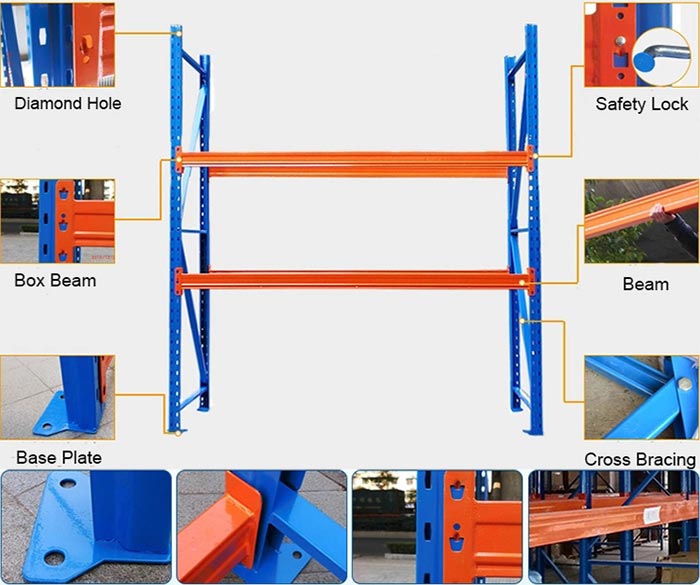

Design drawings for warehouse storage pallet shelves
Distributed Loading Chart
Beam Length(mm) | 80*50*1.5 | 100*40*1.5 | 100*50*1.5 | 110*50*1.5 | 120*40*1.5 | 120*50*1.5 | 140*40*1.4 | 140*50*1.5 | 160*40*1.5 | 160*50*1.5 |
1500 | 4286 | |||||||||
1800 | 2977 | |||||||||
1900 | 2672 | 3809 | 4535 | |||||||
2200 | 1993 | 2741 | 3382 | 4219 | ||||||
2300 | 1823 | 2599 | 3095 | 3860 | 3918 | |||||
2400 | 1674 | 2387 | 2842 | 3545 | 3598 | 4284 | ||||
2500 | 1403 | 2000 | 2391 | 2970 | 3014 | 3598 | 4340 | |||
2600 | 1297 | 1849 | 2201 | 2745 | 2787 | 3318 | 4010 | 4771 | ||
2700 | 1203 | 1715 | 2041 | 2546 | 2584 | 3077 | 3145 | 3716 | ||
3000 | 974 | 1389 | 1655 | 2065 | 2093 | 2492 | 3010 | 3585 | 4105 | |
3300 | 708 | 1010 | 1202 | 1500 | 1522 | 1812 | 2189 | 2610 | 2985 | 3555 |
3600 | 600 | 849 | 1010 | 1260 | 1279 | 1523 | 1839 | 2190 | 2508 | 2986 |
3800 | 540 | 762 | 907 | 1135 | 1148 | 1369 | 1658 | 1965 | 2251 | 2680 |
4000 | 485 | 687 | 818 | 1024 | 1036 | 1235 | 1550 | 1774 | 2032 | 2419 |
Frame Loading Chart
Frame Size Thickness(mm) | 80*60 | 90*70 | 100*70 | 120*95 |
1.8 | 8.5 T | 10 T | 11.8 T | 14 T |
2 | 9.4 T | 11.8 T | 13.5 T | 16 T |
2.3 | 13.5 T | 15 T | 18 T | |
2.5 | 17.8 T | 16.3 T | 20 T | |
2.75 | 22 T |

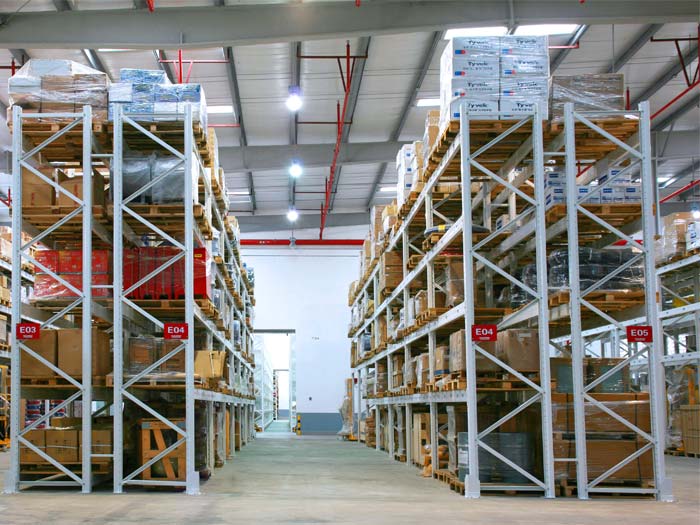

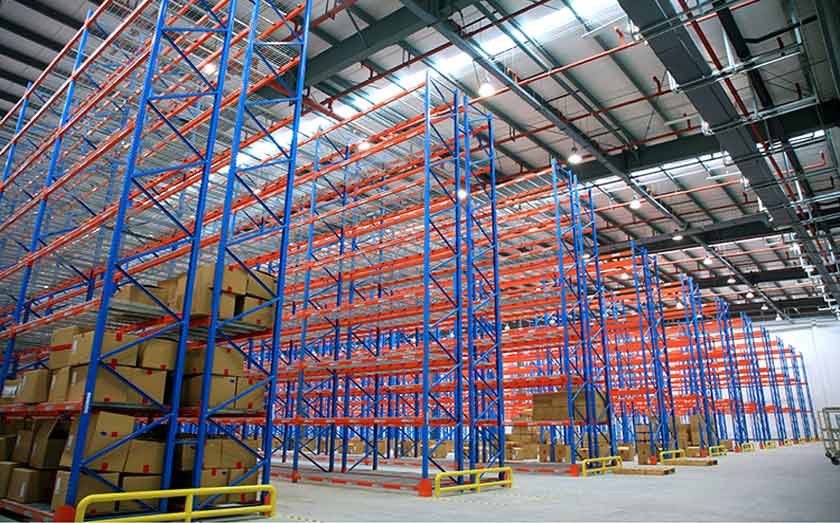

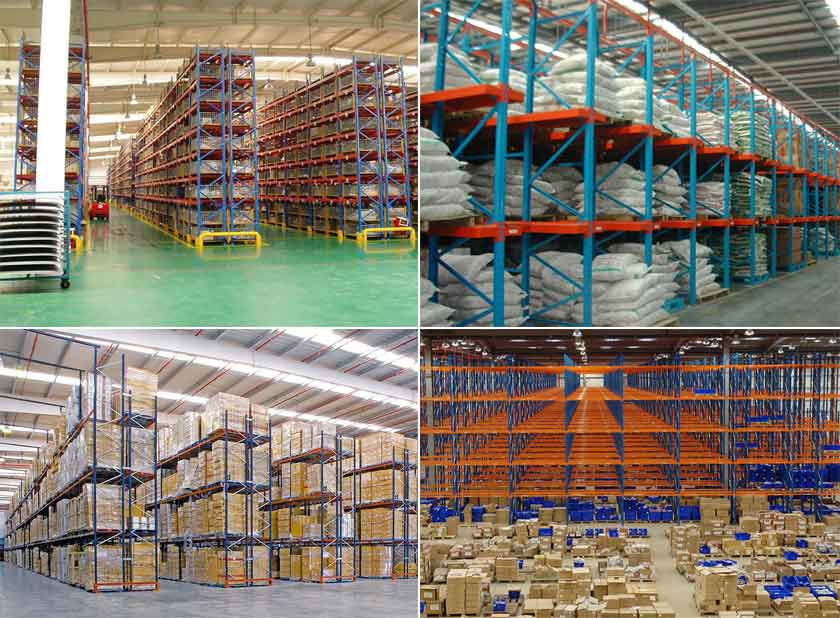

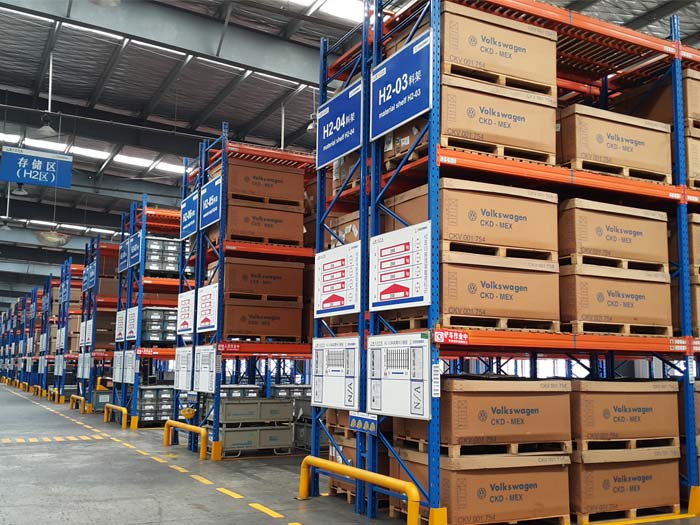

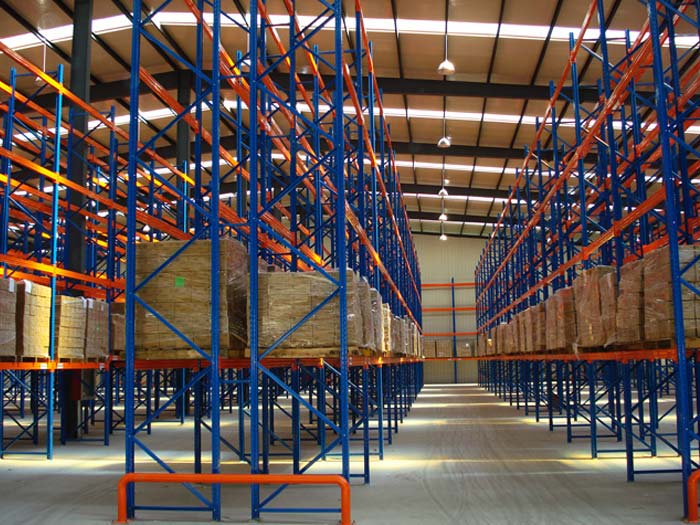

What aspects should we pay attention to when purchasing selective pallet racking system?
1.The stability performance of warehouse shelves is the primary consideration of shelf problem. It is one of the key factors to determine the structural performance of a heavy duty racking.
2.The size of shelf is also the key to determine a shelf problem. For the size of shelf, the size of a shelf should be determined according to a storage space, so this must find a professional designer to design a matching shelf.
3.When choosing shelves, we must put shelves on relatively flat ground to observe whether they are flat or not, and whether each component is defective.
4.You can put the shelves in place and shake them by hand to see if the shaking degree is large or small. If the shaking is too large, you should not choose.
5.You can put the goods on the shelving system to see if the shelf's endurance is strong, you can verify the stability and weight of the warehouse racking.
