    Heavy duty cantilever racking for storage of Q235 steel

Heavy duty cantilever racking for storage of Q235 steel
Heavy duty cantilever racking for storage of Q235 steel
Heavy duty cantilever racking for storage of Q235 steel
Heavy duty cantilever racking for storage of Q235 steel
Heavy duty cantilever racking for storage of Q235 steelHeavy duty cantilever racking for storage of Q235 steel
item No: sps-hdr-002

Heavy-duty cantilever racking is an over-extended arm storage system that is perfect for storing large quantities of Q235 steel.

The heavy-duty cantilever racking system with technical lateral forklift can solve the storage of long materials and irregularly shaped materials.

DESCRIPTION
Packaging & Shipping
FAQ

Heavy-duty cantilever racking is an over-extended arm storage system that is perfect for storing large quantities of Q235 steel.


The heavy-duty cantilever racking system with technical lateral forklift can solve the storage of long materials and irregularly shaped materials. The maximum column can reach 10 meters, cantilever length 1.0-1.2m and load capacity up to 1 ton. Heavy-duty cantilever racking systems are used indoors and outdoors. Hot-dip galvanized surface treatment is available. It can also be installed on top of the column with a suspended ceiling to withstand wind and rain.

Components of  Cantilever Racking

Components of Cantilever Racking


Features of Cantilever Racking


● Broad load capacity for standard and seismic applications

●Center column design for unlimited horizontal space

● Completely customizable


Cantilever Arm

The cantilever is the core of the racking system. Spieth offers variable arms that are compatible with C/C columns. The arms can be easily adjusted on and off the column and are available in various capacity lengths from 220 ~ 1,500 kgs (100 ~ 3,300 lbs). The arms of the cantilever racking can be either single-sided or double-sided.

The arms can be welded to the connectors in different positions depending on the customer's load requirements. Straight arms, standard arms and angled arms are available.


all kinds of Cantilever Arm


Specifications of Cantilever Racking

Product name

Cantilever pallet racking

Length

1000-10000 mm or customized

Width

600-1500 mm or customized

Height

1000-10000 mm or customized

Upright Selection

80*60*1.5/2.0 mm 90*70*2.0 mm 100*70*2.0/2.5 mm

Cantilever Selection

80/100/120/140/160*50*1.5/2.0 mm

Base Selection

200*180 C Steel


Project of Cantilever Racking

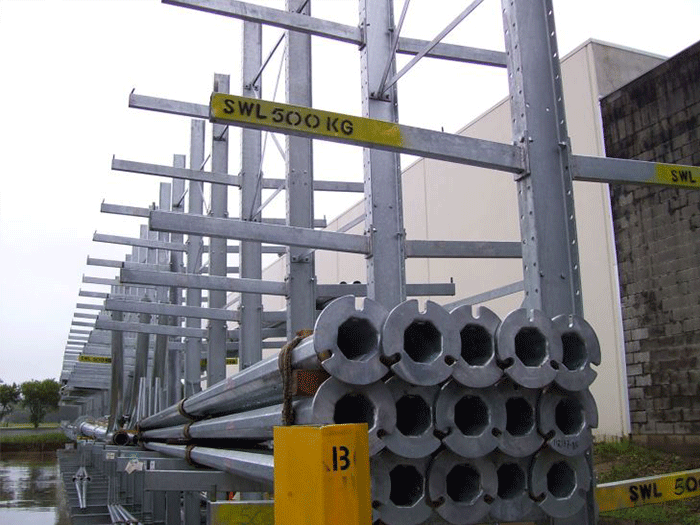

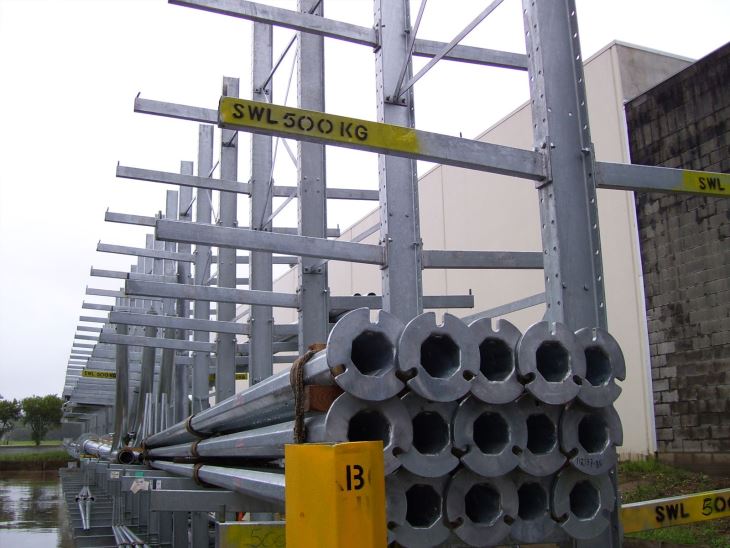

Front view of the cantilever rack for steel

Side view of cantilever racking for steel placement



heavy duty pallet rack packing
    • Do you offer samples available?
       Yes, samples are available. Sample lead time 3-5days generally.
    • Do you offer custom design?
       Custom design is surely available. we have very rich experience in customizing shelves.

    • What is the term of payment?
       Regularly, 30percentTT in advance,70percent against the copy of B/L.

    • What is your delivery time?
      Usually: 1*20' GP container, around 15 days; 1*40'GP container, around 20days; For some urgent orders,will adjust as your requirement accordingly.

    • Are you manufacturer or trading company?
       We are manufacturer. Our factory has been specializing in warehouse storage equipments for years. We warmly welcome you to visit our factory at anytime.
